SMC MAX 700

The SMC MAX 700 is set to be a class leader in the agricultural field.

The MAX700 is one of the highest specification agricultural machines available on the market. It boasts a whole range of standard features that put it ahead of most in the category.

Standard features such as Electronic Power steering, 3000LB electronic winch, trailer light connection, independant rear suspension.

Where To Buy
  • SMC MAX 700 Green

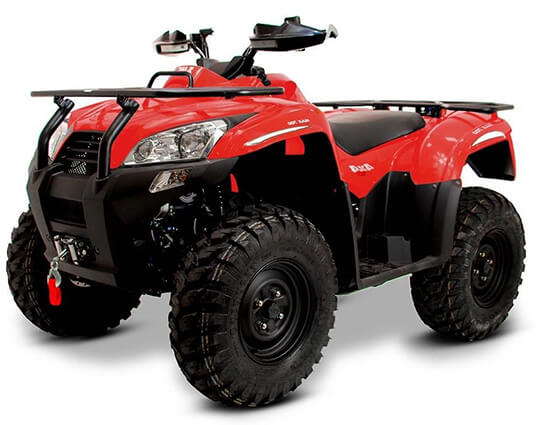

  • SMC MAX 700s Red

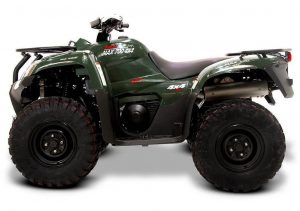

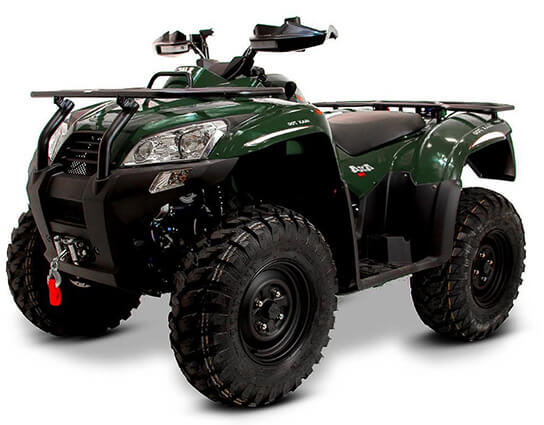

SMC MAX 700 Green

FEATURES SPOTLIGHT

Powerful

Powered by a 4-Stroke Single Cylinder, the MAX produces more lb/ft torque than almost all other competitors in its power category.

Conquer Any Terrain

Fitted with large 14″ wheels with large Duro off road tyres. This quad is equally adept on the road or off the road. Making it an ATV is ideal for any agricultural situation.

  • SMC MAX 700 Green
  • SMC MAX 700 Green

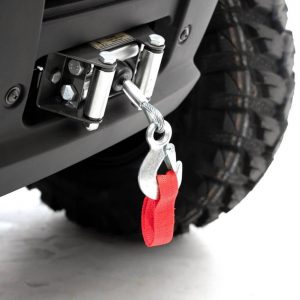

  • SMC Winch
  • SMC MAX 700 Green
Full Specification

Outdoor Workhorse

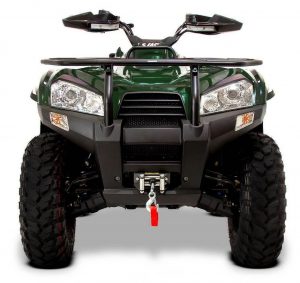

Fitted with a tow bar and winch allowing this quad to be used for all sorts of tasks

Euro 4 Spec

When on-road the rear differential system on this EURO4 spec machine makes cornering and handling smooth and predictable.

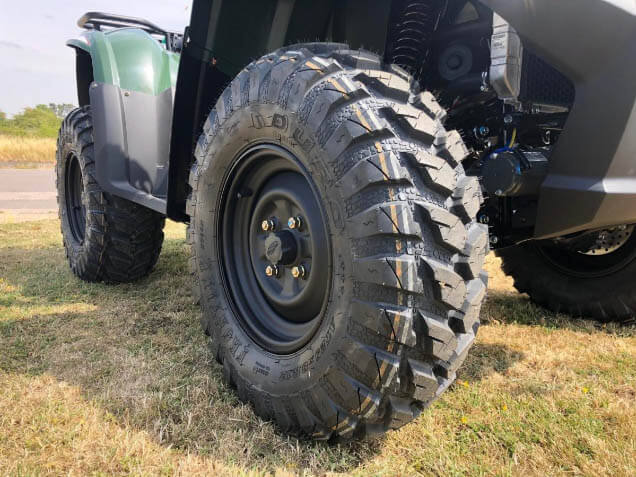

SMC MAX 700 Wheels

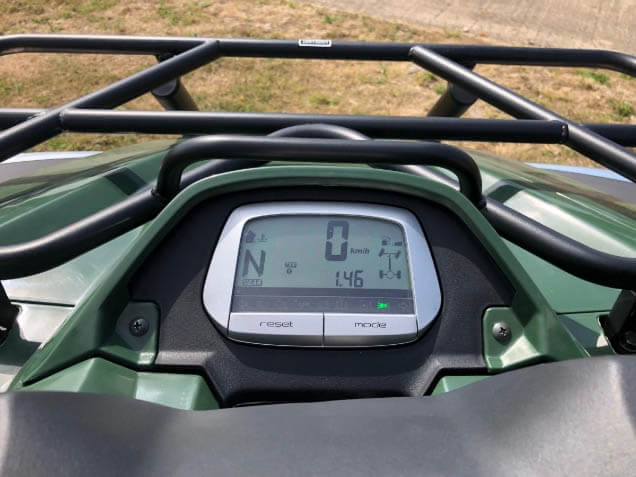

SMC MAX 700 Computer

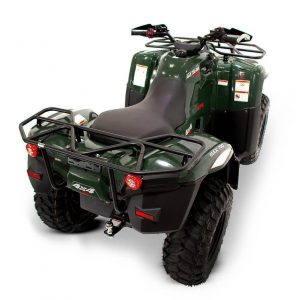

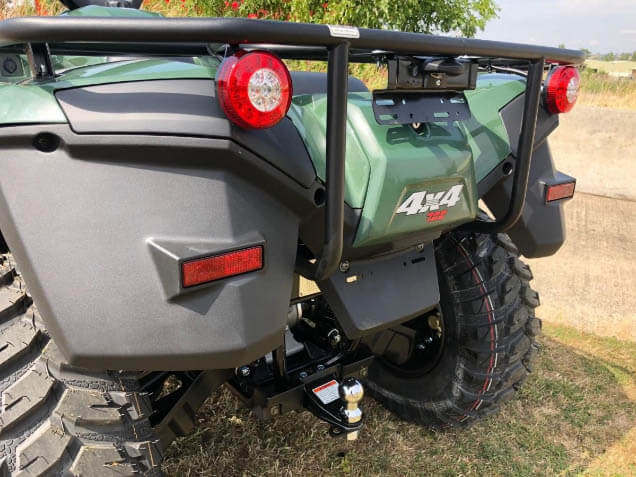

SMC MAX 700 Rear

Full Specification

Bore & Stroke 100 x 86 mm
Capacity675cc
ClutchAutomatic – CVT
CoolingLiquid Cooled
Drive Type 2/4 Wheel Drive Selectable
Electric Power Steering Yes
Electrical Outlet Connector DC 12V 10A 120W
Engine Type4-Stroke Single Cylinder
Final DriveShaft
Front BrakesDisc
Front Shock AbsorbersPreload Adjustable Hydraulic
Front SuspensionDual A-arm
Front Tyre SizeAT25 x 8-12
Front Wheel Size12″
Fuel SystemEFI – Electronic Fuel Injection
Fuel Tank Capacity24 Litres
Gear Selection L/H/N/R/P
GearboxAutomatic Gears
Ground Clearance305 mm
Max Power51HP (OFF ROAD)
Max Torque56.9 NM
Overall Height1250 mm
Overall Length 2125 mm
Overall Width 1230 mm
Rear BrakesDisc
Rear Shock AbsorbersPreload Adjustable Hydraulic
Rear SuspensionIndependant Double A Arm
Rear Tyre SizeAT25 x 10-12
Rear Wheel Size12″
Start TypeElectric Start
Throttle TypeThumb Throttle
Tow Hitch Yes
Transmission TypeV-belt CVT Automatic
Tyre BrandDuro
